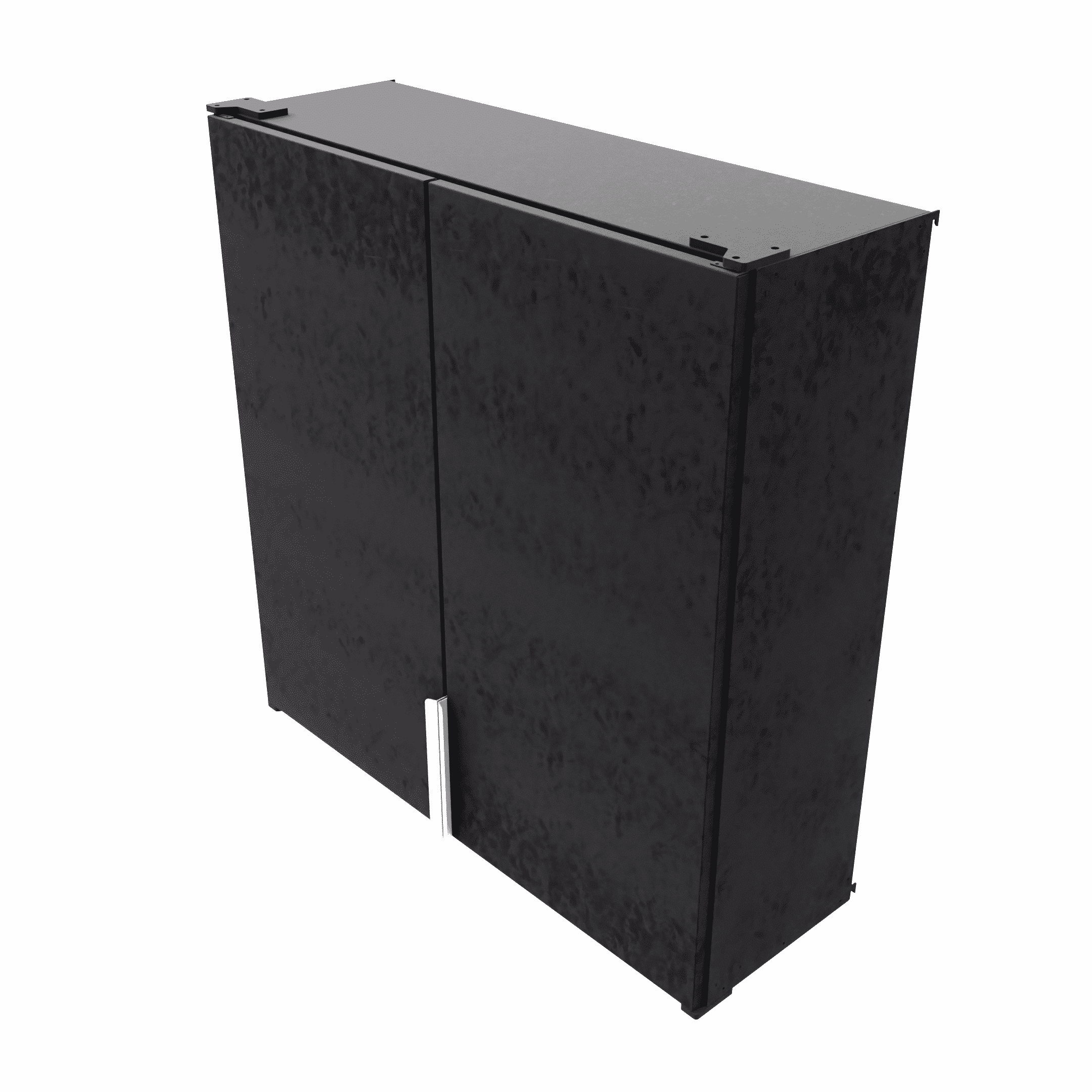

ModPro – Double Door Wall Cabinet

Built Like Nothing Else on the Market

We got tired of seeing "heavy duty" cabinets that flex when you open the door. So we built the cabinet we actually wanted in our own shop, and we didn't cut a single corner doing it!

Grandpa would be proud...

The result is a double door wall cabinet that's wider, deeper, and absurdly stronger than anything else you can buy. Available in 30" or 40" width, 16" or 20" depth, and a standard 40" height with two adjustable shelves. Need something narrower? Check out our Single Door Wall Cabinet in a 20" width.

Why Ours Is Different

Go pick up a cabinet from any big-box store or industrial catalog. Open the door. Feel it twist. Push on the side panel and watch it oil-can. That's what happens when you build with 20 or 18-gauge steel, which is what everyone else uses.

We build our sidewalls from 12-gauge steel (0.105" thick). That's nearly 3x thicker than the 20-gauge stuff and over 2x thicker than 18-gauge. The doors, top, bottom, and shelves are 16-gauge (0.060"), still 67% thicker than 20-gauge and 25% thicker than 18-gauge. When you open this door, it doesn't move anywhere you don't want it to. When you push on the sidewall, nothing happens. It's a vault, not a locker.

Every Surface Works

Most cabinets give you a box with some shelves. We went further. The doors are double-walled: a solid outer panel for strength and clean looks, with a separate slotted inner panel fitted behind it. That inner panel carries the full ModPro slot pattern with the clearance needed for accessories to actually mount and function inside the door. The rear wall is slotted the same way. So the inside of this cabinet is just as configurable as the wall panels outside it. Mount tool holders, bins, hooks, magnetic strips, whatever you need. Organize the way you actually work, not the way some designer thought you should. And everything stays dust-free and protected behind closed doors.

Part of the ModPro Modular Wall System

This cabinet hangs on your ModPro wall rails the same way our panels do. The 30" width drops right in where three panels were, the 40" replaces four. No adapters, no brackets, no nonsense. Swap it, move it, reconfigure your whole wall whenever you want.

A Note on Weight

These are serious cabinets, and they weigh like it. The rails will handle them without any issue, but your wall has to be up to the job too. Make sure your rails are properly secured into studs or blocking rated for the combined weight of the cabinet plus whatever you load into it. If you're hanging a 40" cabinet full of tooling, that wall needs to be right.

Slots Inside and Out

The ModPro slot pattern isn't just on the outside. Both door interiors and the rear wall of the cabinet are cut with the same slot system, so you can mount tool holders, bins, hooks, and accessories inside the cabinet just like you do on your wall panels. With double doors, you get even more slotted surface area than the single door model, turning every square inch into usable, organized space while keeping everything dust-free and out of sight.

Part of the ModPro Modular Wall System

This cabinet mounts directly to your ModPro wall rails using the same slot pattern as our modular panels. The 30" width replaces three standard panels and the 40" replaces four, no adapters or special hardware required. A ModPro rail system is required for installation.

Installation Note

We got tired of seeing "heavy duty" cabinets that flex when you open the door. So we built the cabinet we actually wanted in our own shop, and we didn't cut a single corner doing it. Not one.

The result is a double door wall cabinet that's wider, deeper, and absurdly stronger than anything else you can buy. Available in 30" or 40" width, 16" or 20" depth, and a standard 40" height with two adjustable shelves. Need something narrower? Check out our Single Door Wall Cabinet in a 20" width.

Why Ours Is Different

Go pick up a cabinet from any big-box store or industrial catalog. Open the door. Feel it twist. Push on the side panel and watch it oil-can. That's what happens when you build with 20 or 18-gauge steel, which is what everyone else uses.

We build our sidewalls from 12-gauge steel (0.105" thick). That's nearly 3x thicker than the 20-gauge stuff and over 2x thicker than 18-gauge. The doors, top, bottom, and shelves are 16-gauge (0.060"), still 67% thicker than 20-gauge and 25% thicker than 18-gauge. When you open this door, it doesn't move anywhere you don't want it to. When you push on the sidewall, nothing happens. It's a vault, not a locker.

How They're Made

Every cabinet starts as flat American steel and gets laser cut on some of the most powerful fiber lasers on the planet. Every hole, slot, and contour is precision-programmed and burned clean, no punching, no approximation.

From there, each panel moves to our servo-driven press brakes where our world-class forming experts bend every piece to exact spec. These aren't button pushers. They live and breathe bending, and they can feel the difference between right and almost-right.

After forming, parts go to our fabrication department where they're painstakingly fit up and welded by hand. Not tacked together on an assembly line. Fit. Checked. Welded. Every joint matters, and our welders treat it that way.

Then comes our 4-stage powder coat finish: blast, clean, prime, coat. No shortcuts, no skipped steps. The result is a finish that shrugs off scratches, chemicals, and years of shop life.

Every single cabinet has hours of skilled human hands on it, in addition to all the robotic and CNC work that got it there. We bring the best of both worlds together: the precision of modern manufacturing and the craftsmanship of people who genuinely care about what they're building. All of it, every step, happens right here in Texas.

Built to Be the Last Cabinet You Ever Buy

We didn't design these for a disposable world. We built them the way things used to be built, except with better tools, better steel, and better engineering. This is heirloom-quality shop furniture. It'll outlast you. It'll outlast your kids. Their kids will still be slamming these doors shut and nothing will have changed. When you factor in the decades of service you'll get from one of these cabinets, the price isn't just reasonable, it's a bargain.

Every Surface Works

Most cabinets give you a box with some shelves. We cut our ModPro slot pattern into both door interiors and the entire rear wall, so the inside of this cabinet is just as configurable as the wall panels outside it. Mount tool holders, bins, hooks, magnetic strips, whatever you need. Organize the way you actually work, not the way some designer thought you should. And everything stays dust-free and protected behind closed doors.

Part of the ModPro Modular Wall System

This cabinet hangs on your ModPro wall rails the same way our panels do. The 30" width drops right in where three panels were, the 40" replaces four. No adapters, no brackets, no nonsense. Swap it, move it, reconfigure your whole wall whenever you want. A ModPro rail system is required for installation.
