Weld Table DIY Kit Fully Assembled! – 30″ x 48″

Clear
SKU: WT-TM-00300048-01-000 Category: Tags: , ,

The easiest to assemble welding table kit in the world, includes tab and slot design plus an integrated T-slot assembly system. This ensures the flattest and fastest to build table available!

Product Update!

Our 30″x48″ weld table tops are super simple to build, but it turns out we can achieve even better results in our shop by assembling them on one of the large fab tables. So that’s what we’re going to do! We’ll fixture them to one of the big daddys, and lock them in place nice and flat, THEN ship them to you.

At no charge!

Our 30″ x 48″ (actual size 29.5″ x 47.5″ for shipping purposes!) welding table top is the perfect solution for portable welding or confined spaces. Laser cut from 3/16″ A36 steel plate, this top comes professionally assembled and ready to put to use!

This kit includes the same standard 5/8″ holes as all of our welding tables, meaning you can use a wide range of fixturing accessories. In addition, the table also includes built in jigs used for assembly that can still be used for fixturing for the life of the table! 5/16″ nuts and bolts fit perfectly for any reason you can come up with.

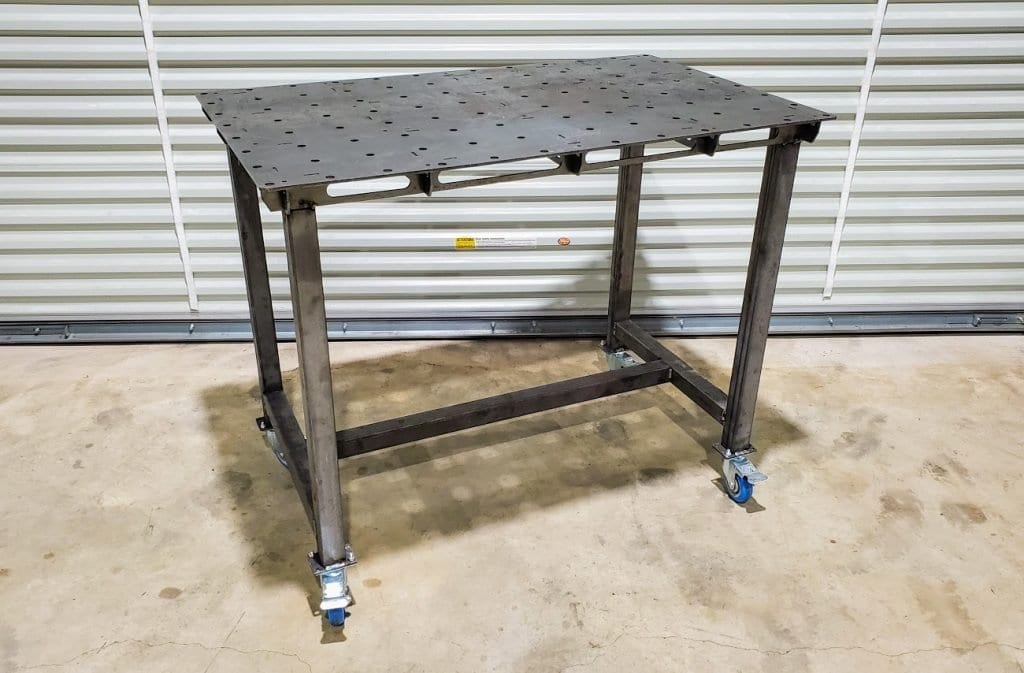

Kits With Legs / Casters

We also offer the welding table tops with legs and casters. If you choose this option, we’ll include pre-cut legs and cross-members.  All you’ll need to do is bolt the legs in place, and weld the cross braces in place.

Built Like a Tank

Not that we recommend it, but to demonstrate the flexibility of these little tables, we put one of our giant 50″ x 100″ tables (~1,600 pounds) on top and rolled it around with no problem! So you can rest assured it will handle just about any normal task you can throw at it.

Packaging and Shipment

One of the other nice things about these tables is that we can use traditional shippers like FedEx. We pack the entire table into a single heavy duty two-part box which weighs about 140 pounds and send it on it’s way. Your box will look pretty much like this.

If you happen to order an accessory or two that we can fit in the box, we’ll pack them together. So make sure you have a dolly, or a friend, to help move the box when it arrives. We don’t want any members of the Texas Metal Works family throwing their back out!

Table Specific Accessories – Sold Separately

Welding Table Starter Accessory Pack (30″ x 48″ Table Only

We’ve assembled everything you need to get started fixturing on a new welding table, including clamps for holding down, stops for alignment on the table, and right angles to make sure things are straight (and we’ve included a 10% discount on these items when purchased in this kit!).

Check out our Welding Table Starter Accessory Pack (30″ x 48″ Table Only).

Combo Tool Holder (30″ x 48″ Only)

This custom combo accessory welds to the side of our 30″ x 48″ table and allows for the storage of Stops, Side Clamps, Inserta Clamps, and other tooling to keep them handy, organized and nearby.

Check out our Combo Tool Holder (30″ x 48″ Table Only).

Welding Table 10″ X 10″ Vise Mount (30″ x 48″ Table Only)

Made exclusively for our 30″x48″ welding table, this vise mount features .55″ wide slots to easily accommodate up to 1/2″ bolts. Vises (and other tools) with either three or four-bolt patterns will fit within the pattern cut into this extension.

Check out our Welding Table 10″ X 10″ Vise Mount (30″ x 48″ Table Only).

Share your thoughts!

5 out of 5 stars

5 reviews

Let us know what you think…

What others are saying

  1. One person found this helpful
    Jeff B.

    Jeff B. (verified owner)

    I purchased this table from Texas Metal Works two weeks ago. I was really happy that all of my questions were answered before I ordered.

    The chat session that’s available from the website is a great resource. I even had questions answered during the time the Superbowl was being played! That’s great service.

    The table arrived in great condition. Absolutely nothing to complain about. (Having a hand cart available made it easy to move the table into the shop, and I even assembled the table on the cart.

    The table legs and braces went together well. The table is a great value for the type of work I intend to do.

    I am completely satisfied with the table and with the level of support provided by TMW. I would definitely purchase from them again.

    Thanks!

    (1) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction…

  2. One person found this helpful
    Doc

    Awesome

    Doc (verified owner)

    John was great answering my questions and having the table assembled was appreciated. I found out I was local to his shop and he actually delivered it to my house…thx John!

    (1) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction…

  3. One person found this helpful
    Brihan

    This is a quality table.

    Brihan (verified owner)

    The table is not quite fully assembled you will have to weld the leg braces on, thankfully you have a or should have a welder. Overall I am very satisfied with the quality of the table and how fast and easy it was to assemble. I looked at 3 other tables within $300 -$500+ and i think this a a great table for the home welder or small shop. I would consider a bigger table if I had the room. Thank you Texas Metal Works for providing a quality work surface. I know I will get some good years of service out of this product, it was well worth the investment. Full disclosure I have already purchased table accessories and have built metal and wood projects on this unit. Thank you again TMW!!!

    (1) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction…

  4. One person found this helpful
    Rik

    Welding table

    Rik (verified owner)

    Works great, and super handy that it’s on wheels for the shop.

    (1) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction…

  5. Bill E.

    Great table – Great company

    Bill E. (verified owner)

    My first table arrived damaged by the shipper. Called Kirk. No hassle, no wait, no problem. A new one was on the way the next day with plans on getting the 1st one back to them.

    New one arrived in 2-3 days! All parts necessary to complete are there and ready to weld up.

    This is a great table for the hobby welder or small fabricator. Sturdy, has standard holes on 4″ centers. Doesn’t take up a ton of room ion your shop.

    May buy another to use as a chop saw table / extension to tie together to make a bigger table.

    Can’t say enough good about Texas metal. You guys have my permission to share my info if someone has more questions.

    Bill E.

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction…

    • Kirk Pozadzides

      Kirk Pozadzides

      Bill, thanks for the kind words and your patience as we overcame the shipping damages. Good luck with your new projects. We’re here to help when you’re ready!!!

      (0) (0)

      Something wrong with this post? Thanks for letting us know. If you can point us in the right direction…

×
