Welding Table – 30″ x 40″ Fully Fabricated Weld Tables

$1,099.00$2,129.00

Texas Metal Works welding tables are computer designed, CNC cut, and professionally assembled to give you years of service in demanding environments. Our 30″ x 40″ weld tables are the best bang for the buck in the industry!

Frequently Bought Together

Welding Table Accessory Handle - 30" (Gen 2)

Take advantage of our heavy duty table's mobility and add our custom-built handle to your 30" x 40" or 30" x 60" welding tables.

Welding Table Extension - 10" X 10" Vise Mount

Our bolt on vise mount adds a 10" x 10" extension that'll let you securely mount almost any vise, and really be able to put some leverage on it!

Welding Table Extension - 30" x 10"(Gen 2)

Expand your welding table surface area by adding our 30" x 10" table extension to our 30" x 40", 30" x 60" or 60" x 120" welding tables

Suspended Single Drawer Cabinet

Organize your table with our single 20" wide suspended drawer cabinet featuring heavy-duty drawer slides with soft close drawer slides. First, we CNC laser cut and bend our 18-gauge drawer.  Next, we enclose it with 10-gauge side panels and 18-gauge top and bottom panels. This unit is built Texas tough!

Weighing 45 lbs and measuring 19.5" wide x 20" deep x 6" tall, this unit attaches to laser-cut holes in our table's internal rib structure.  This fully enclosed storage unit features one drawer measuring 4.25" tall.

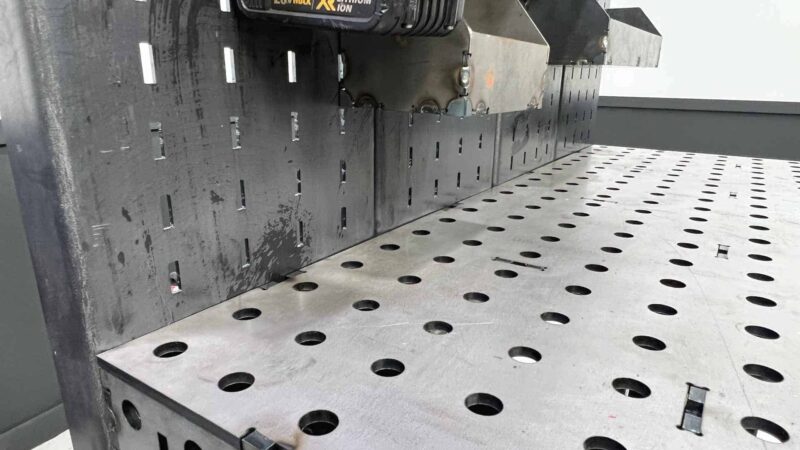

Weld Table Super Slot Panel - 30" Table Width

Our Weld Table Super Slot Panels provide expandable storage and organization tableside.  Panels are sized specifically for the narrow side of our Weld Tables.  Mix and match our bins, hooks, tool storage, shelves, and more to customize your work surface.

Packing Notes: This product contains optional purchases and does not automatically come with any items SKU: N/A Category: Tags: , ,
Guaranteed Safe Checkout

Welding Table Description

Texas Metal Works offers fully fabricated tables shipped FREE – saving you time, hassle, and money! Our 30″ x 40″ welding tables offer over 8.3 square feet of surface area, covered by standard laser cut 5/8″ / 16mm fixturing holes.

The surface is a true 30″ wide and 40″ long, and the 6″ sidewalls allow for additional fixturing outside of the table dimensions. For even MORE room, you can always add one or more of our welding table extensions.

Table Top Features

  • A full 30 inch wide x 40 inch long work surface.
  • Standard 38″ surface height (Check out Custom Height – Cut To Order).
  • 6 inch table sides also allow fixturing.
  • Over 540 precision CNC cut holes (5/8″ / 16mm).
  • Accommodates Stronghand and similar tooling.
  • Available in 1/4″ (A36 HRPO) and 3/8″ (A572-50) thickness table tops with 1/4″ sidewalls and rib structure
  • Professionally assembled and guaranteed forever!

Table Base Features

  • 2in x 16 gauge tubular steel legs and cross bracing.

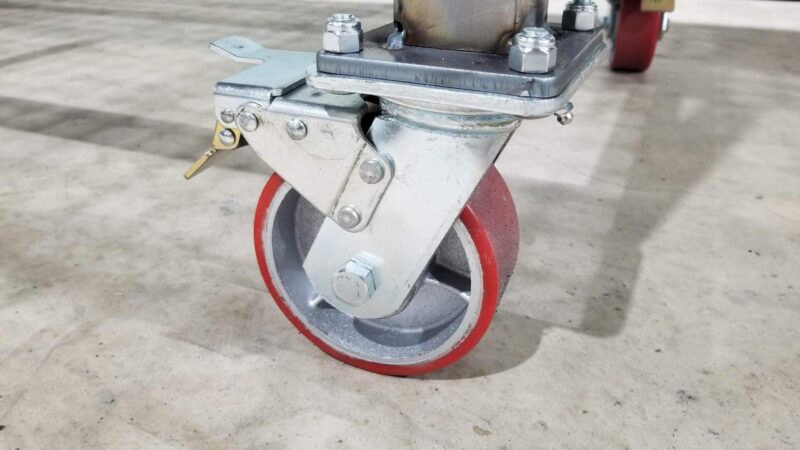

  • W/ Casters: 5″ swivel and fixed casters with Total Lock Brakes rated over 800 pounds per wheel. Non-marking polyurethane wheels with iron hubs.
  • W/ Feet: Glass-fibre reinforced tube ends and self-leveling swivel stud feet.
  • Weighs approximately  275 lbs. with legs and casters.

Customizations

Welding Table Components

Complete tables are built from dozens of laser cut parts, which is just one key component to the overall accuracy of the finished product. Sure, our CNC machines can maintain accuracy to within .002″, but let’s face it – a stack of parts isn’t going to perfectly fabricate itself!

Welding Table Parts

Welding Table Construction

Read our full article: How We Build Super Flat Welding Tables

The strength of a Texas Metal Works weld table comes from the interlocking series of ribs supporting the surface. These precision cut ribs lock together and also interlock with the table surface.

This image has an empty alt attribute; its file name is 50x100-Fixtures-1024x576.jpg

As you might guess, fabricating a huge table with precision requires extraordinary effort and a lot of practice. But we also augment our fabricator’s experience with the best tools available. In addition to using 142 bolts, 132 feet of threaded rod, 63 fixturing plates and making hundreds welds – we also fabricate all of our table on a heavy duty milled reference surface!

You can read a complete discussion of our welding table build process here, but the short version is that we start out by securely bolting every table top directly to a precision milled surface.

Only after securing the top to a reference surface do we add the ribs and sidewalls and secure them by bolting everything firmly in place before locking it in with hundreds of weld points.

At the end of the day, we’re not happy until we can lay a level across the surface and visually verify that there is almost no (or none whatsoever) daylight peeking through.

Notes on Shipping

As you can imagine, these massive tables can be a little challenging to ship and receive. When we ship any of our tables the carriers require us to put them on a pallet. But normal pallets won’t work, so we manufacture custom pallets specifically for shipping these bad boys.

Each table is bolted directly to a custom pallet with heavy-duty hex head screws to ensure it stays put during transport. If you choose the option with casters or purchase accessories, they’ll be placed in a box and safely strapped to the pallet.

30×40 Ready to Ship

Blue heat shrink wrap is used to protect the tabletop against dust and water. It also serves as the perfect visual indicator of topside damage resulting from delivery. We encourage customers to fully inspect their tables upon delivery and before signing the trucking company’s Bill of Laden.

Pallets are loaded onto a truck at our dock via forklift, and we use long fork extensions to put them in the truck. Shipping companies only carry a small pallet jack on the truck, and those jacks can reposition many of our tables up to our 40×80 size. Larger tables can’t easily be moved via pallet jack. So on the receiving end, it’s going to require a similar setup for unloading purposes. Please note: If you don’t have a forklift, you’ll need to purchase optional Liftgate Services.

At a bare minimum, you’ll need 48″ forks to lift the table out of the truck. For our 40×80 or larger tables, we recommend 72″ or 84″ fork extensions. Amazon sells a bunch of extensions in case you need them. We’ve used these 72″ fork extensions to get the job done, and these 84″ fork extensions work even better. When buying forklift extensions pay particular attention to the width of your forks to make sure you get the right size!

If you can get heavier duty fork extensions we HIGHLY recommend it! Especially if you order your table along with several accessories that will ship on top. The tables plus accessories can often exceed 1,000 pounds, and the light-duty extensions may flex or bend. Please contact us if you have any concerns about receiving, or if we need to make special plans to get things delivered safely!

Weight 300 lbs
Dimensions 40 × 30 × 38 in
Package Options

1/4" A36 P&O – Top Only, 1/4" A36 P&O – Top, Legs, & Self-Leveling Feet, 1/4" A36 P&O – Top, Legs & 5" Casters, 3/8" A572-50 – Top Only, 3/8" A572-50 – Top, Legs, & Self-Leveling Feet, 3/8" A572-50 – Top, Legs & 5" Casters
