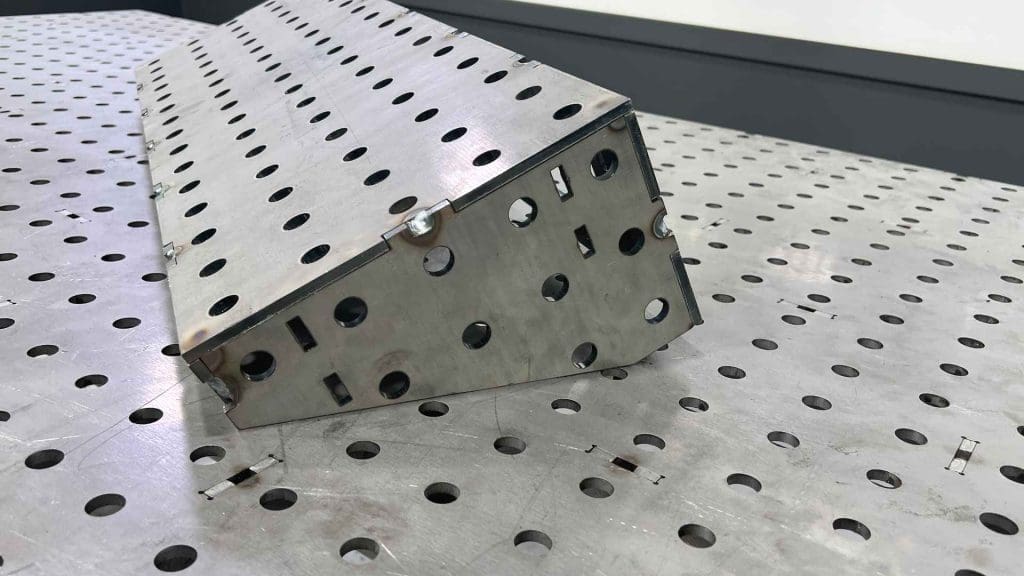

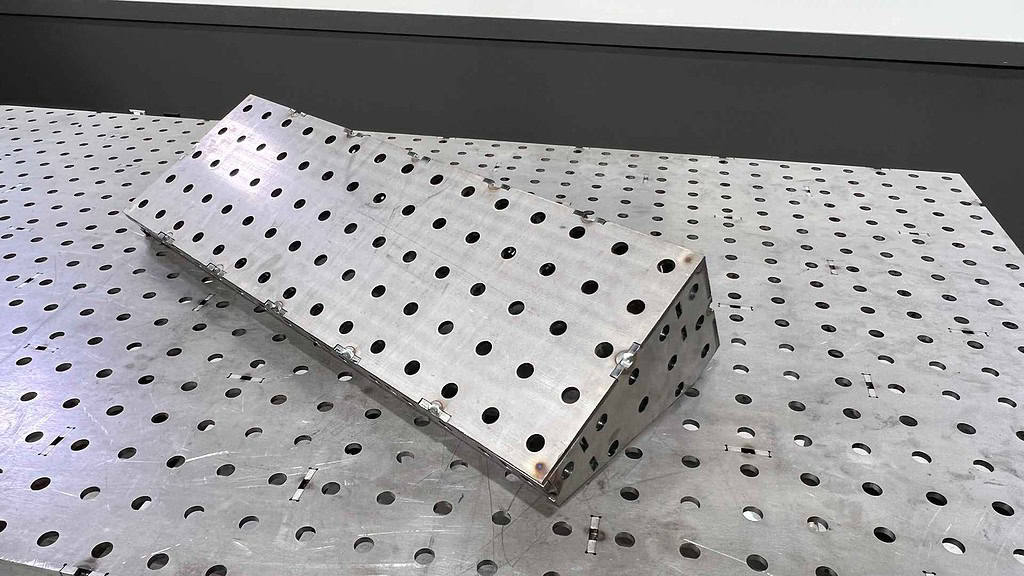

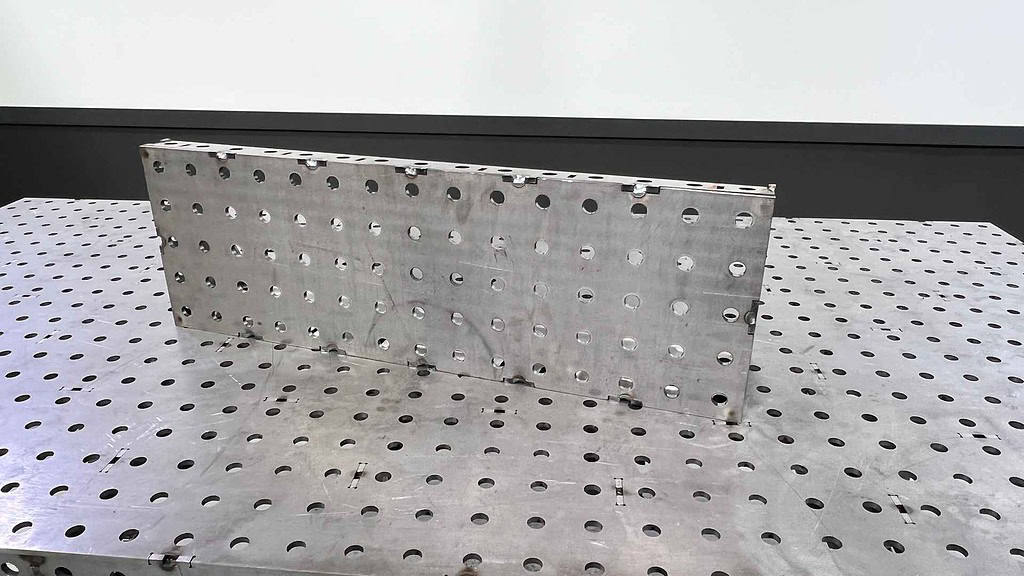

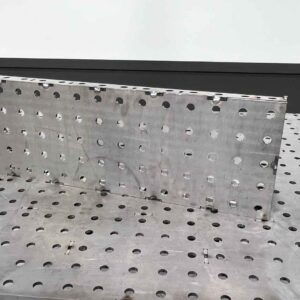

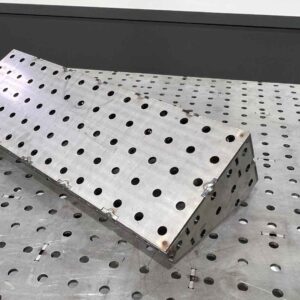

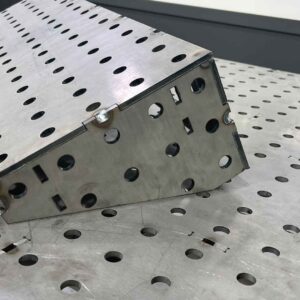

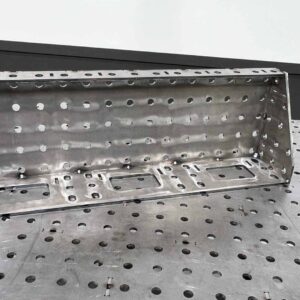

Welding Table Extension – 30″ x 10″(Gen 2)


Expand your welding table surface area by adding our 30″ x 10″ table extension to our 30″ x 40″, 30″ x 60″ or 60″ x 120″ welding tables

Packing Notes: Product includes four (4) 5/8" bolts SKU: AC-TM-TABLEXTN-02-030 Category: Tags: , , ,
Guaranteed Safe Checkout


Our welding table extensions can be used for a wide variety of purposes, not the least of which is to extend the length of our welding tables. By bolting these extensions to the sides of a table the length or width can be increased by 10″ (single) or 20″ (pair).

The extensions can also be used as full-length (or width) 90-degree squares for fabricating things that require precision angles. When used in combination with our Fab Squares it’s possible, for example, to perfectly fixture all of the legs for a table at perfect dual 90-degree angles.

Available Extension Sizes

The Welding Table Extensions come in five widths and two different depths:

Double up and expand your table by 20″ or 40″. These add-on extensions transform provide flexibility to accommodate larger projects. Also, don’t forget our extensions can also mount topside to create height for fixturing.

Also, keep in mind the smaller sizes are often purchased exclusively to use as large squares on the surface since they don’t cost much more than a couple of 6″ wide squares, but can be deployed more quickly and ensure evenness along a line of fixturing!

One last thing to keep in mind. Even if you have a big table, you can use the smaller extensions, like the 20″ units, to only extend the table in certain spots to accommodate extra-wide fixturing. Then, when you aren’t using them to extend the table, use them on top as big squares!

Gen 1 versus Gen 2 Extensions

In 2022, we updated our first-generation extensions to include some customer-inspired tweaks including walls on the front and sides with our precision CNC cut holes (5/8″ / 16mm) and our Super Slots. Additionally, we reduced weight in the mounting area to make them easier to manipulate while adding slots for improved leveling.

Choose the generation that’s best for you! We’ll continue to stock both!

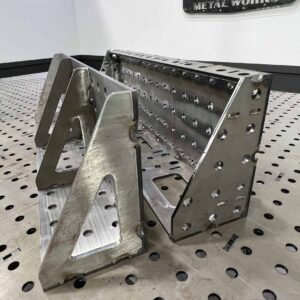

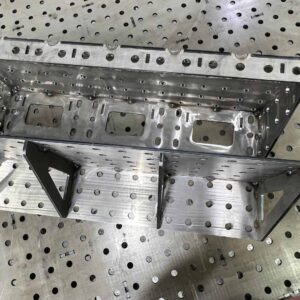

Gen 1 vs Gen 2 Comparison for 30″ Extensions
Weight 36 lbs
Dimensions 30 × 10 × 6 in
