Press the Quick Acting Button to allow the threaded screws to slide in and out for fast setup.
(Release the button to re-engage the threaded screw for tightening.)

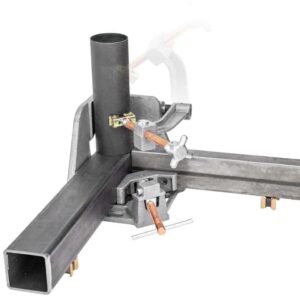

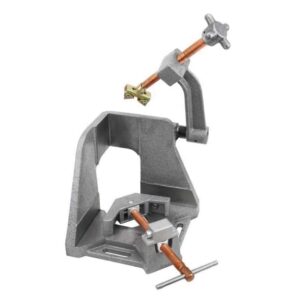

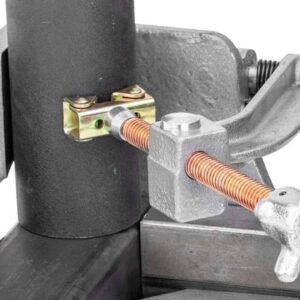

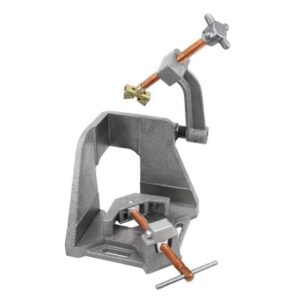

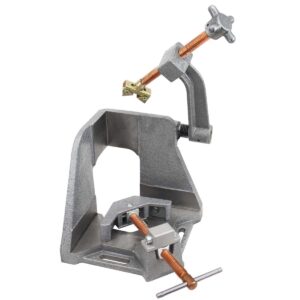

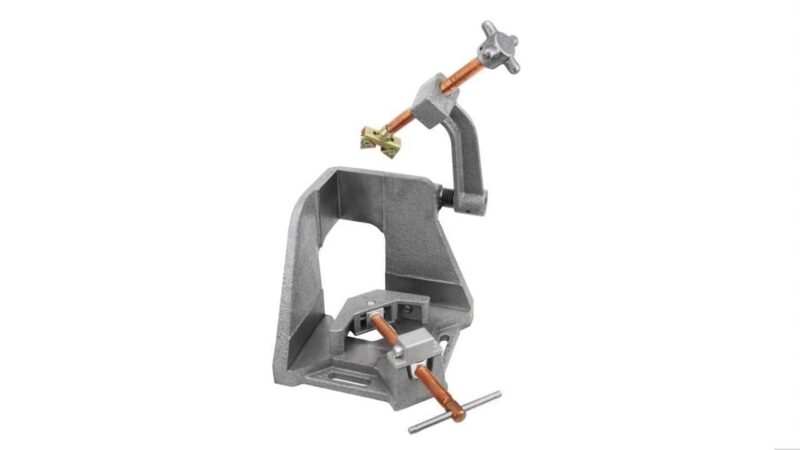

V-Pad and Quick Acting Button on the “swing-away” arm.

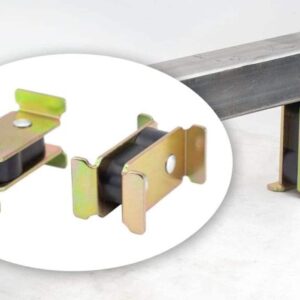

Use FREE Magnetic Rest Blocks 1″, 1-1/4″ and 2″ heights to support and stabilize long stock!
(Free with models: WAC35-SW and WAC45-SW)

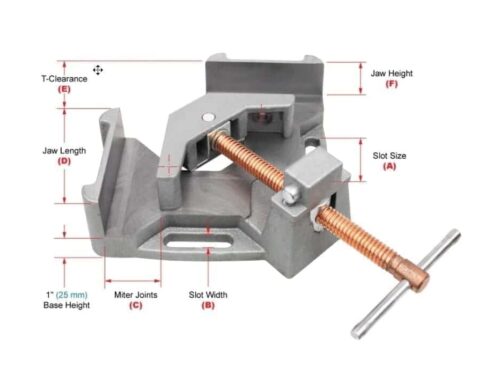

|Slot Size (A)||1.18″||2″||1.18″||1.6″|
|Slot Width (B)||0.43″||0.43″||0.43″||0.42″|
|Miter Joints (C)||3.75″||4.75″||3.75″||3.75″|
|Jaw Length (D)||4.80″||5.32″||4.80″||4.2″|
|Jaw Height (F)||1.38″||2.25″||1.38″||1.35″|
